General
Product Name

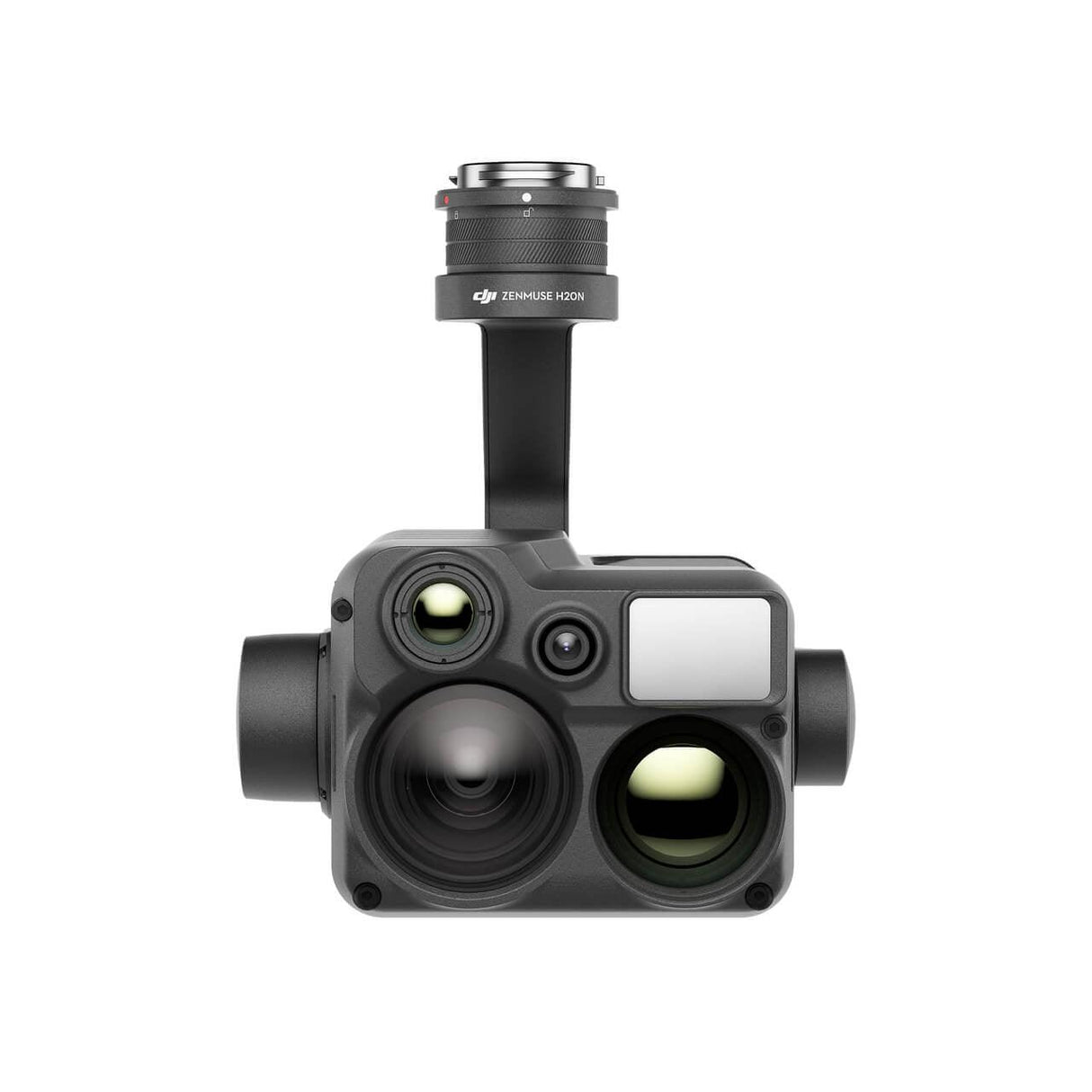

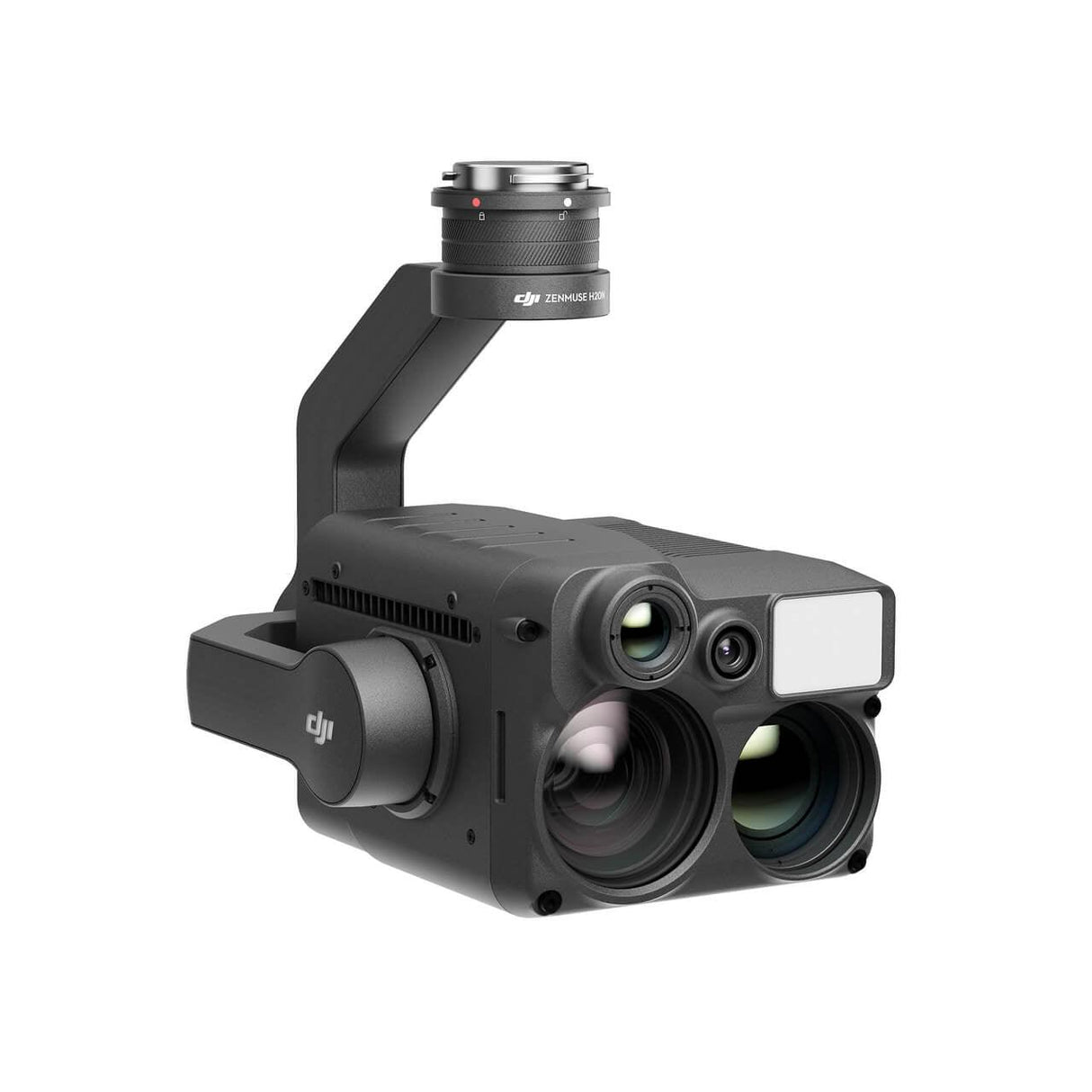

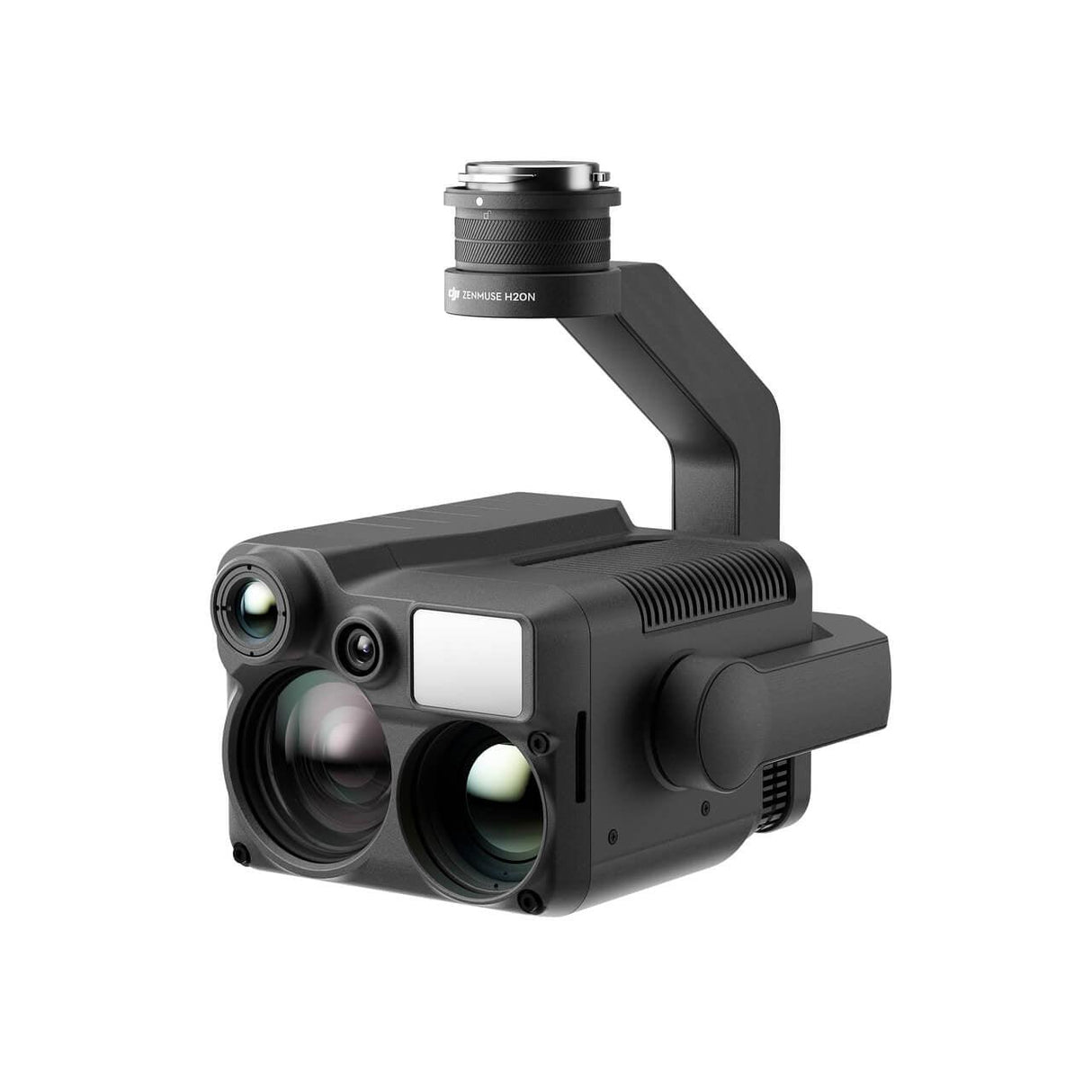

Zenmuse H20N
Dimensions
178x135x161 mm
Weight
878±5 g
Protection Rating
IP44
Laser Safety
Class 1M (IEC 60825-1:2014)
Supported Aircraft

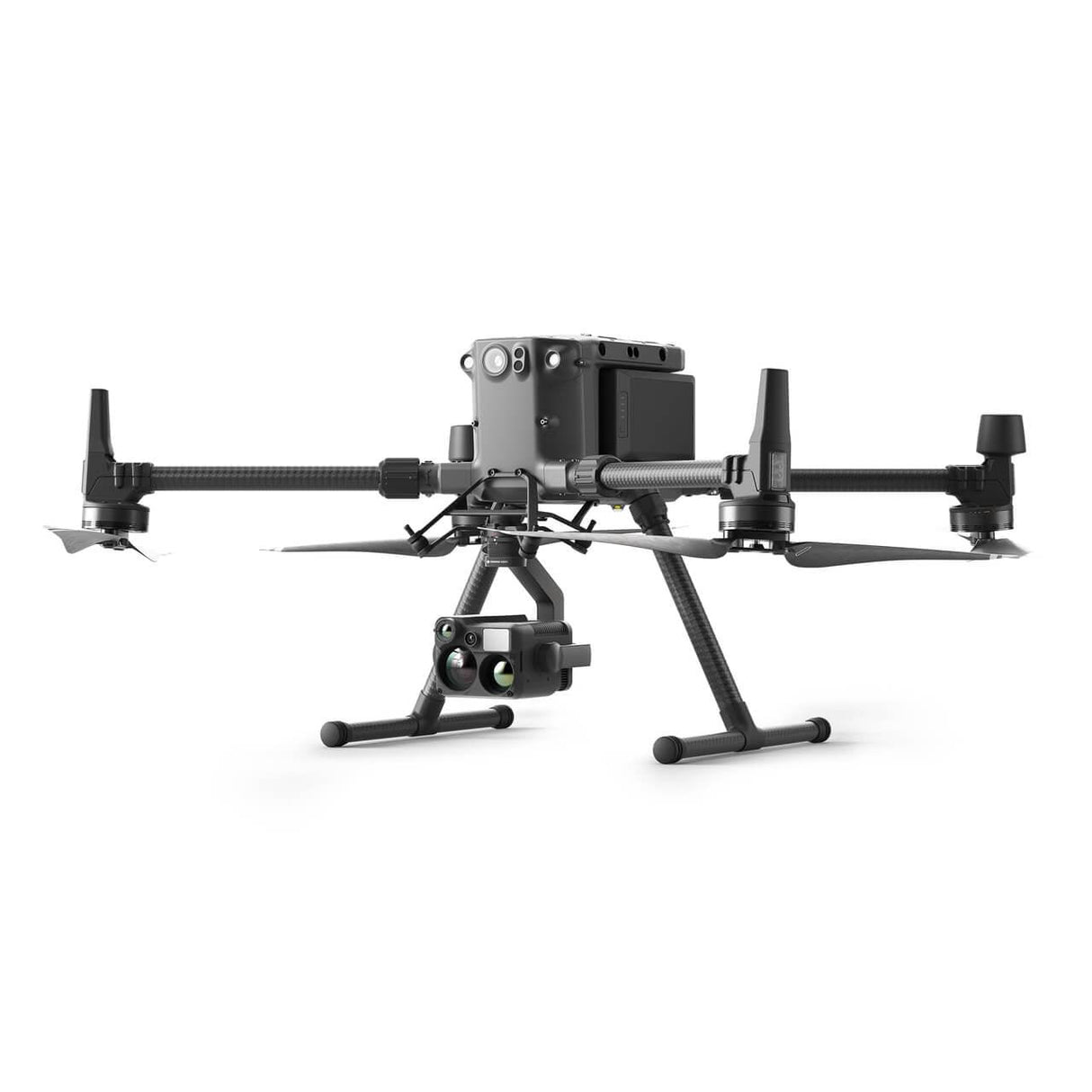

Matrice 300 RTK
Gimbal
Angular Vibration Range
±0.01°
Mount
Detachable
Controllable Range
Pan: ±320°
Tilt: -120° to +60°
Mechanical Range
Pan: ±330°
Tilt: -132.5° to +68°
Roll: -90° to +60°
Max Control Speed
Pan: 90°/s
Tilt: 90°/s
Zoom Camera
Sensor
1/1.8" CMOS; Effective Pixels: 4M
Lens
Focal Length: 6.8-119.9 mm (equivalent: approximately 32.7-574.5 mm)
Aperture: f/1.6-f/11
Focus: 1 m to ∞ (wide); 8 m to ∞ (tele)
Focus Mode
MF/AF-C/AF-S
Exposure Mode
Manual, Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
Photo: 8-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
ISO Range
Video: 100-102400
Photo: 100-102400
Video Resolution
2688×1512@30fps
1920×1080@30fps
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
Video Format
MP4
Video Caption
Supported
Max Image Size
2688×1512
Photo Format
JPEG
Wide Camera
Sensor
1/2.7" CMOS; Effective Pixels: 2M
Lens
DFOV: 73.6°
Focal Length: 4.5 mm (equivalent: approximately 29 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Exposure Mode
Auto
Exposure Compensation
±3.0 (1/3 increments)
Metering Mode
Spot Metering, Average Metering
AE Lock
Supported
Electronic Shutter Speed
Photo: 0.8-1/8000 s
Video: 1/30-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction Off): 1/10-1/8000 s
Video (Night Scene Mode, Enhanced Noise Reduction On): 1/5-1/8000 s
ISO Range
Video: 100-102400
Photo: 100-102400
Video Resolution
1920×1080@30fps
1920×1080@10fps (Night Scene Mode, Enhanced Noise Reduction Off)
1920×1080@5fps (Night Scene Mode, Enhanced Noise Reduction On)
Video Format
MP4
Video Caption
Supported
Max. Image Size
1920×1080
Image Format
JPEG
Tele Infrared Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 12.5°
Focal Length: 44.5 mm (equivalent: approximately 196 mm)
Aperture: f/1.2
Focus: 45 m to ∞
Equivalent Digital Zoom
16x, 32x
Video Resolution
640×512@30fps
Video Format
MP4
Image Resolution
640×512
Image Format
R-JPEG* (16 bit raw included)
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Sensitivity (NETD)
≤50 mK @ f/1.0
Temperature Measurement Method
Spot Meter, Area Measurement
Scene Range
-20° C to 150° C (High Gain)
0° C to 500° C (Low Gain)
Temperature Alert
Supported
FFC
Auto/Manual
Palette
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Wide Infrared Thermal Camera
Thermal Imager
Uncooled VOx Microbolometer
Lens
DFOV: 45.5°
Focal Length: 12 mm (equivalent: approximately 53 mm)
Aperture: f/1.0
Focus: 5 m to ∞
Equivalent digital zoom rate
4x
Video Resolution
640×512 @ 30 fps
Video Format
MP4
Image Resolution
640×512
Image Format
R-JPEG (16 bit raw included)
Pixel Pitch
12 μm
Spectral Band
8-14 μm
Sensitivity (NETD)
≤50 mK @ f/1.0
Temperature Measurement Method
Spot Meter, Area Measurement
Scene Range
-20° to 150° C (High Gain)
0° to 500° C (Low Gain)
Temperature Alert
Supported
FFC
Auto/Manual
Palette
White Hot/Fulgurite/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot
Laser Range Finder
Wavelength
905 nm
Maximum Power
3.5 mW
Single Pulse Width
6 ns
Measuring Accuracy
± (0.2 m + target distance x 0.15%)
Measuring Range
3-1,200 m (0.5 x 12 m vertical surface with 20% reflectivity)
Storage
Supported microSD Cards
Supports a UHS-I Speed Grade 3 microSD card with a capacity of up to 128 GB
Supported File System
exFAT
Environment
Operating Temperature
-20° to 50° C (-4 to 122°F)
Storage Temperature
-20° to 60° C (-4 to 140°F)
