Sniffer 4D Mini 2

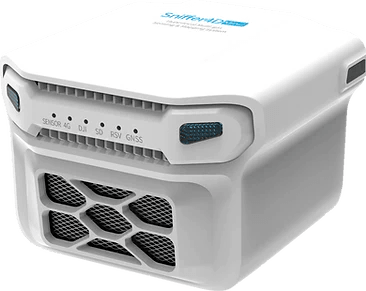

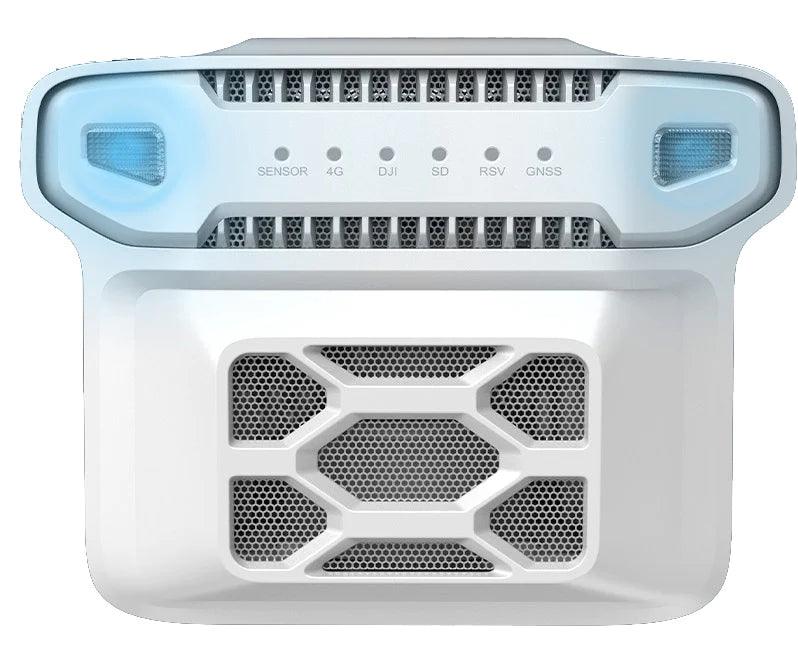

Sniffer4D Mini2 Hyper-local Multi-gas Detection & Mapping System
The Ultimate Tool for Versatile & Powerful Gas Sensing
Discover the Sniffer4D Mini2, a class-leading multi-gas sensing solution designed for seamless integration with UAV platforms. Capable of sensing up to 9 gases simultaneously, this system offers real-time 3D distribution displays, providing decision-makers with timely, actionable insights.
Key Features
Sense Up to 9 Gases: Unprecedented capability to monitor multiple gases and their 3D distributions in real-time.Real-time Data Transmission: Ensures immediate data relay for analysis.
Comprehensive Monitoring: Enables monitoring from multiple ends for a thorough overview.
One-click Result Delivery: Simplifies the reporting process, enhancing productivity.
Verified Data Quality: Ensures reliability and accuracy of the data collected.
Enhanced Integration
The Sniffer4D Mini2 is compatible with the DJI M30 series and DJI Dock, streamlining the integration process with your UAV setup. This integration not only reduces costs but also significantly boosts efficiency for unmanned inspections across industrial sites and pipeline leakages.
A Complete Workflow Solution
From data collection to report generation, the Sniffer4D Mini2, in combination with Sniffer4D Mapper and a UAV, offers a one-stop workflow solution. This simple yet powerful integration supports a wide range of applications, making it the ideal choice for professionals seeking efficiency and accuracy.
Applications & Benefits
- Industrial Inspections: Ideal for pipeline leakages and site inspections, offering a cost-effective solution.
- Environmental Monitoring: From ambient air quality to greenhouse gases, monitor a wide range of environmental parameters.
- Research & Development: A valuable tool for scientific research, providing accurate and real-time data.
Technical Specifications
- Real-Time Analysis: With 4G real-time data transmission to the cloud, supported by Sniffer4D Mapper for visualization and analysis.
- User-Friendly Design: Features one-cable connection, high-brightness RGB warning LEDs, and status LEDs for easy operation.
- Flexible Data Reporting: Supports private deployment to third-party platforms via MQTT protocol and decoded data output in JSON format.
| Ambient Air Monitoring 1 |
|---|
| Inhalable Particulate Matter (PM2.5&10) Sensing Module |
|
O3+NO2 Sensing Module |
| CO Sensing Module |
| SO2 Sensing Module |
| Ambient Air Monitoring 2 |
| Inhalable Particulate Matter (PM2.5&10) Sensing Module |
| O3+NO2 Sensing Module |
| CO Sensing Module |
| SO2 Sensing Module |
| Volatile Organic Compounds (VOCs) Sensing Module |
| Ambient Air Monitoring 3 |
| Inhalable Particulate Matter (PM2.5&10) Sensing Module |
| O3+NO2 Sensing Module |
| CO Sensing Module |
| SO2 Sensing Module |
| Volatile Organic Compounds (VOCs) Sensing Module |
| OU Sensing Module |
| HAZMAT RESPONSE |
| Volatile Organic Compounds (VOCs) Sensing Module |
| CxHy/CH4/LEL Sensing Module |
| Wide-range CO Sensing Module |
| Wide-range SO2 Sensing Module |
| Cl2 Sensing Module |
| O2 Sensing Module |
| NO2 Sensing Module |
| H2S Sensing Module |
| OIL & GAS / Pipeline |
| Volatile Organic Compounds (VOCs) Sensing Module |
| CxHy/CH4/LEL Sensing Module |
| H2S Sensing Module |
| Wide-range SO2 Sensing Module |
| Landfill Inspection |
|---|
| Wide-range SO2 Sensing Module |
| Volatile Organic Compounds (VOCs) Sensing Module |
| Cl2 Sensing Module |
| H2S Sensing Module |
| NH3 Sensing Module |
| CxHy/CH4/LEL Sensing Module |
| PM |
|---|
| Inhalable Particulate Matter (PM2.5&10) Sensing Module |
| Total Suspended Particulates (TSP/PM100) Sensing Module |
| Normal Electro-Chemistry |
| O3+NO2 Sensing Module |
| NO2 Sensing Module |
| CO Sensing Module |
| SO2 Sensing Module |
| H2S Sensing Module |
| O2 Sensing Module |
| Special Electro-Chemistry |
| NH3 Sensing Module |
| HCl Sensing Module |
| HCN Sensing Module |
| HF Sensing Module |
| H2 Sensing Module |
| Cl2 Sensing Module |
| PH3 Sensing Module |
| NO Sensing Module |
| Wide-range SO2 Sensing Module |
| Wide-range CO Sensing Module |
| HCHO Sensing Module |
| OU & NDIR |
| OU Sensing Module |
| CxHy/CH4/LEL Sensing Module |
| CO2 Sensing Module |
| VOCs |
| Volatile Organic Compounds (VOCs) Sensing Module |
| DJI Integration Capabilities |
|---|
| DJI M300/M350 RTK Integration Kit |
| DJI M30 Series Integration Kit |
| DJI Mavic 3 Enterprise Series Integration Kit |
| Optional Externally-mounted Modules (Need to be used together with a Sniffer4D base unit, do not work stand-alone) |
|---|
| Ultrasonic Wind Speed & Direction Sensing Module |
| Nuclear Radiation Sensing Module |
| Ultraviolet Spectrophotometry Ozone Sensing Module |
| TDLAS-based High-resolution (1ppm) CH4 Sensing Module |
| External Satellite Positioning Module |
| 1 ppm NDIR CO2 Sensing Module |
| External Temperature & Humidity Sensing Module |
