DJI Dock 3
DJI Dock 3
Rise to Any Challenge

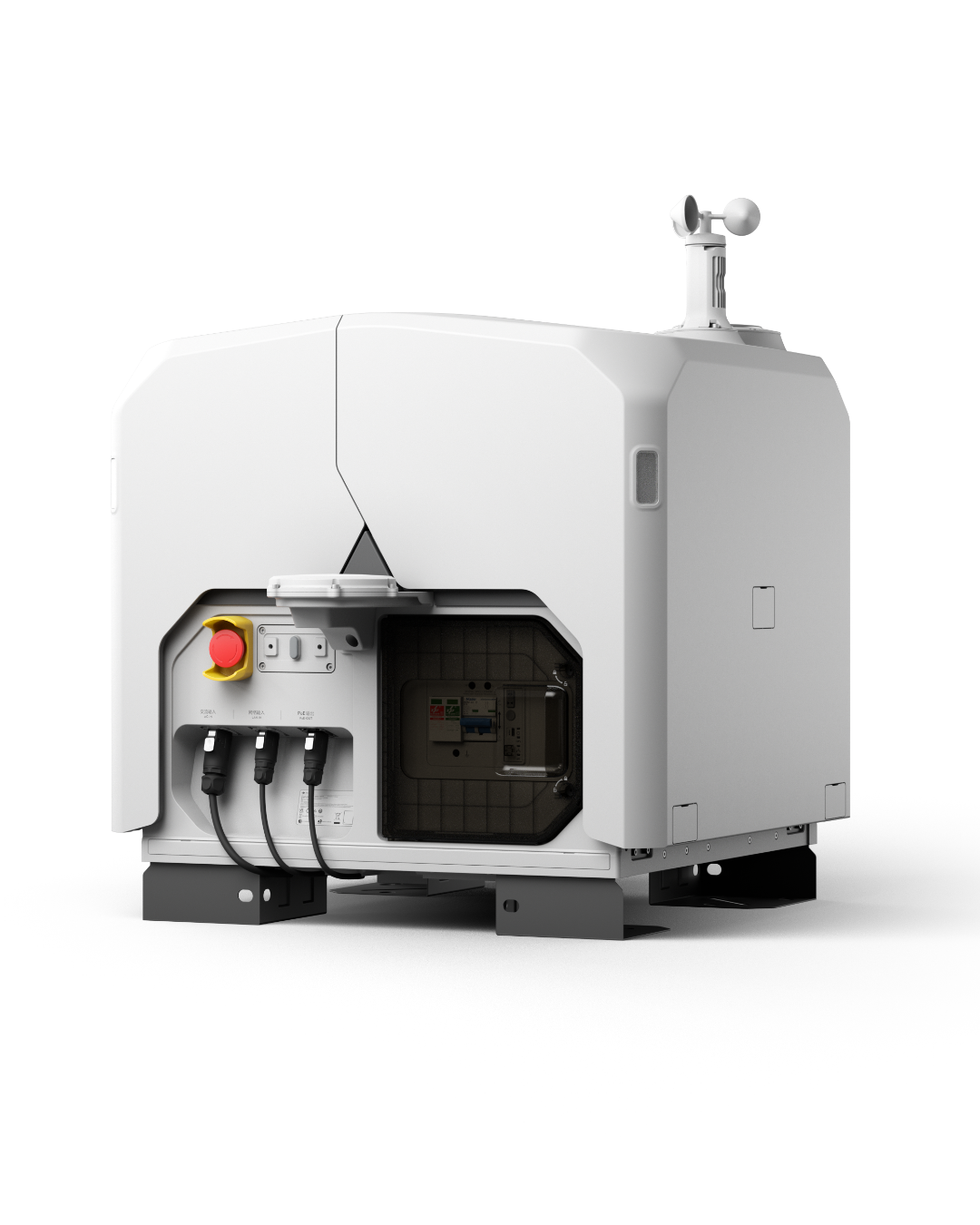

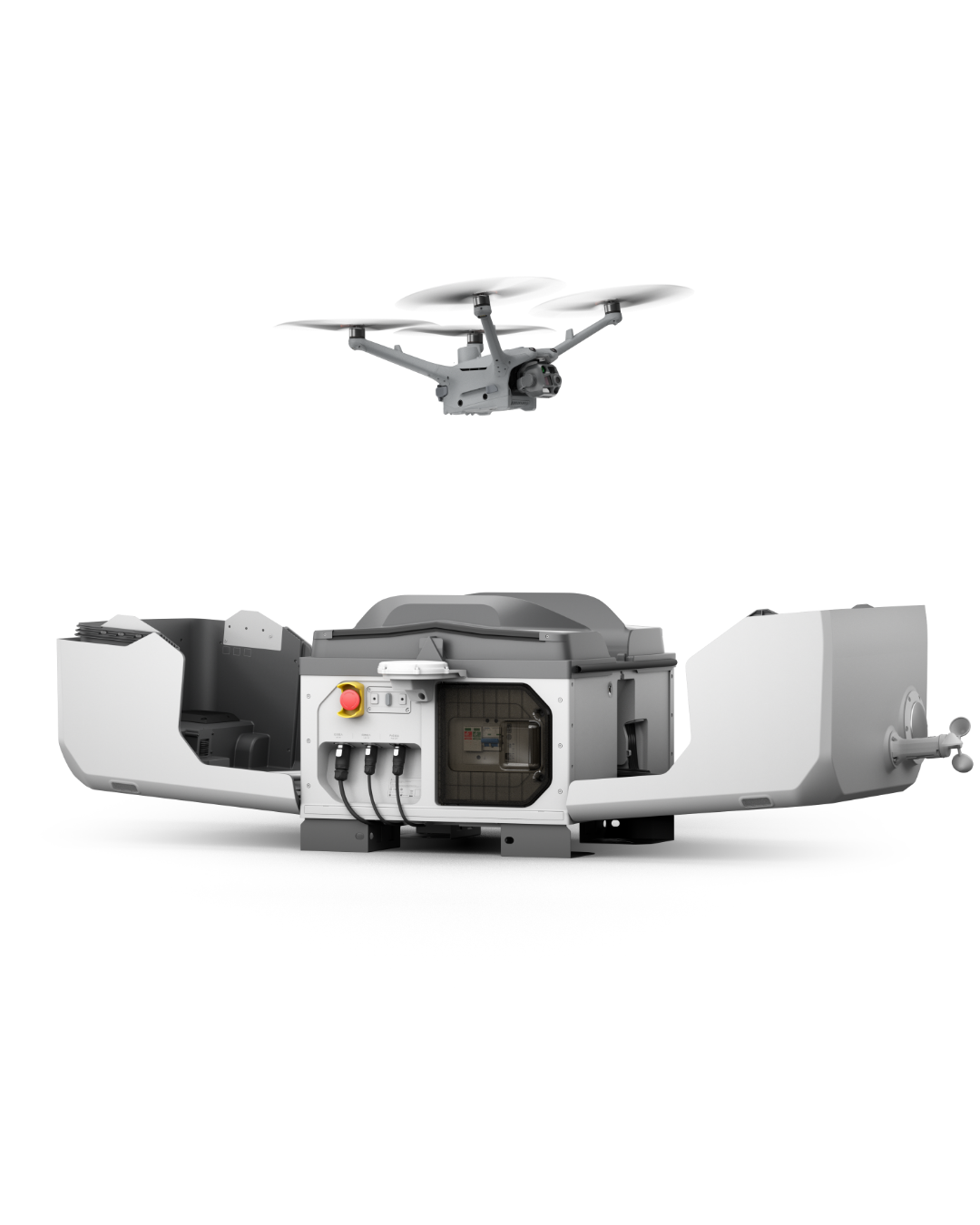

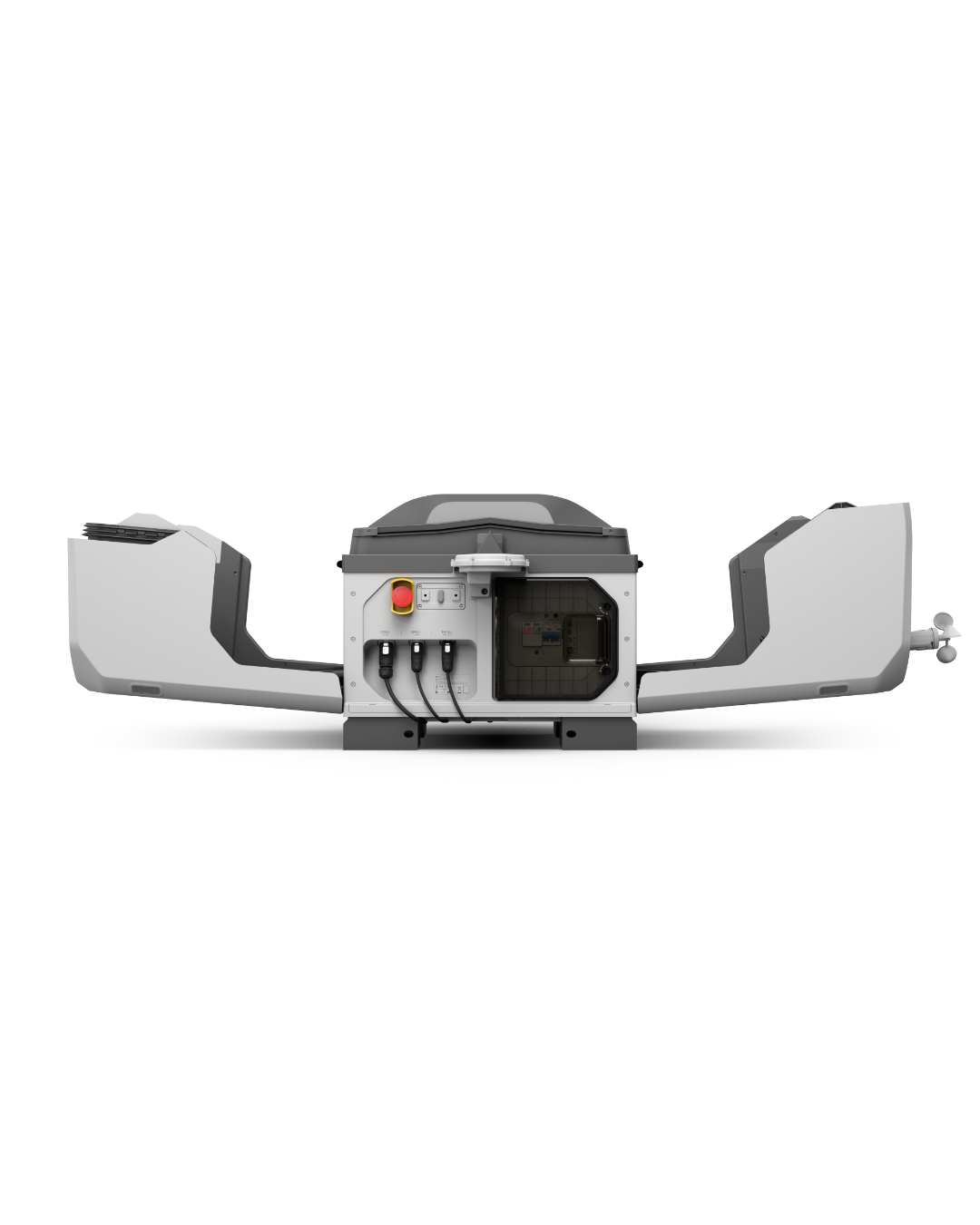

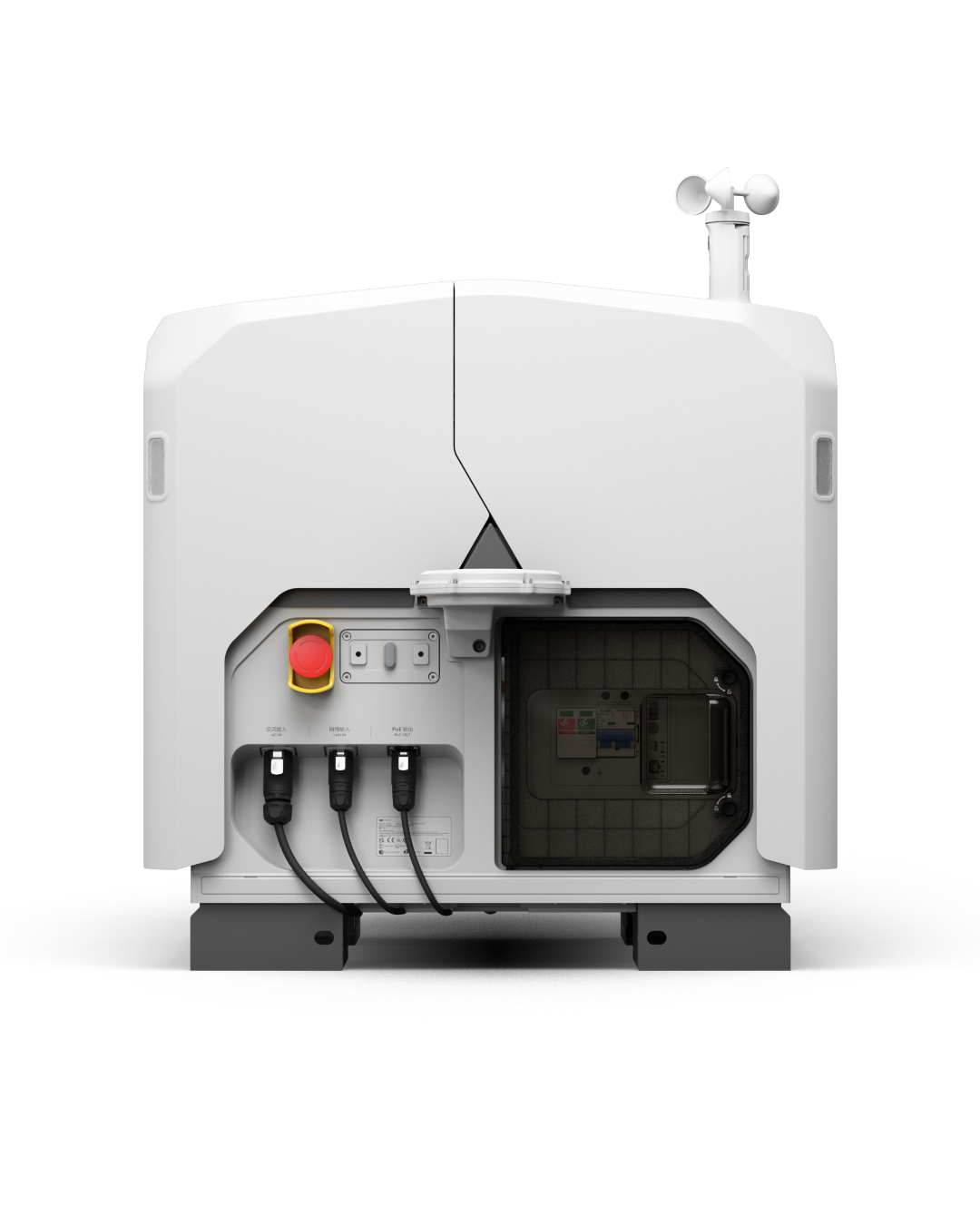

DJI Dock 3 is DJI’s first docking station designed for both fixed and vehicle-mounted deployment, offering unparalleled adaptability for remote drone operations. Equipped with the Matrice 4D or Matrice 4TD drones, this advanced docking system is built for 24/7 automated missions, reducing operational time and labor costs while maximizing efficiency.
Key Features
Adaptability in Any Environment
Extreme Temperature Resistance: Operates in temperatures ranging from -30°C to 50°C (-22°F to 122°F).
Wind Resistance: Withstands winds up to 12 m/s, ensuring stable takeoff and landing.
Rugged Construction: IP56-rated Dock and IP55-rated drones provide protection against dust and water.
Low-Noise, Anti-Ice Propellers: Ensures smooth operation in freezing rain.
Flexible Deployment & Ultra-Long Transmission
Fixed Deployment: Enhanced signal quality with the D-RTK 3 Relay for 25 km transmission range.
Mobile Vehicle-Mounted Deployment: First DJI Dock to support on-the-go operations, ideal for rapid deployment.
Cloud-Based Dock Location Calibration: Ensures precision for multi-dock operations.
Matrice 4D & Matrice 4TD
Wide-Angle Camera: 4/3 CMOS, 20MP, mechanical shutter.
Medium Tele Camera: 1/1.3-inch CMOS, 48MP.
Tele Camera: 1/1.5-inch CMOS, 48MP, 168mm equivalent.
Laser Range Finder: 1800m measurement range.
Specialized Capabilities:
Matrice 4D: Ideal for high-precision mapping and surface inspections.
Matrice 4TD: Equipped with infrared thermal camera and NIR auxiliary light for emergency response and public safety.
Extended Flight Time:
54 minutes forward flight
47 minutes hovering
Advanced Safety & Intelligence
Obstacle Avoidance: LiDAR & millimeter-wave radar technology for precision navigation.
Smart Night Vision: Matrice 4TD’s Night Scene mode enables full-color night vision.
Automated Dual-Drone Rotation: Enables continuous aerial footage with real-time data relay.
Seamless Cloud Integration: DJI FlightHub 2 enables remote mission planning, live view, and data sharing.
Security & Compliance
FlightHub 2 ISO 27001 Certification ensures data security.
4G Dongle Private Deployment for secure networked operations.
Accessories & Upgrades
D-RTK 3 Relay Fixed Deployment Version: Boosts positioning accuracy and video transmission distance.
Obstacle Sensing Module: Enhances flight safety in complex environments.
Gimbal-Following Spotlight & Real-Time Voice Speaker: Integrated broadcasting and lighting solutions.
DJI RC Plus 2 Enterprise Remote Controller: Standalone drone control for expanded flexibility.
DJI Care Enterprise
With every DJI Dock 3 purchase, users receive one year of DJI Care Enterprise Plus or an extended warranty, providing:
Unlimited free repairs within coverage.
Battery replacements.
Fleet-wide coverage.
Free shipping for repairs.
Industry Applications
Public Safety – Search & Rescue, Fire Response, Law Enforcement.
Powerline Inspection – High-voltage line assessments.
Geographic Information Systems – 3D mapping and survey.
Oil & Gas – Pipeline and infrastructure monitoring.
Renewable Energy – Wind turbine & solar farm inspections.
Roads & Bridges – Structural integrity analysis.
Water Conservancy & Maritime Operations.
