Autel Dragonfish Standard
From
$121,250.00 CAD
Unit price
/
Unavailable
AUTEL DRAGONFISH LITE
SUPER LONG ENDURANCE
The Dragonfish's unique tilt-rotor design simplifies operation and maximizes performance and efficiency. With no complicated moving parts, the dragonfish is modular, waterproof, innovative and reliable. The Dragonfish is mission-ready right out of the box and includes powerful AI tracking capabilities and many modular payload options. An endurance time of up to 75 minutes (including payload) further augments the Dragonfish's robust mission capabilities and pushes it significantly ahead against other VTOL competition.
INTELLIGENCE AND AUTONOMY
The Dragonfish comes with a variety of automated functions to streamline and simplify mission tasks. Advanced algorithms add an additional layer of consistency and simplicity to the user workflow.
- 1-BUTTON TAKE-OFF AND LANDING
- AI HIGH-SPEED TRACKING
- POINT OF INTEREST
- ADAPTIVE TRACKING
- ADVANCED MISSION PLANNING
SAFETY AND REDUNDANCY
INTERCHANGEABLE PAYLOAD SYSTEM
Tackle any operation with a variety of payload options that can be tool less swapped to suit mission needs. Dragonfish payloads are designed to be interchangeable between aircraft classes to maximize the value and enhance the mission capability of the system.
| Payloads Adaptability | Z2 | T3 | T3H | L20T | L50T |
| Dragonfish Lite | √ | √ | √ | × | × |
| Dragonfish Standard | √ | √ | √ | √ | × |
| Dragonfish Pro | √ | √ | √ | √ | √ |
SMART. SIMPLE. EFFICIENT.

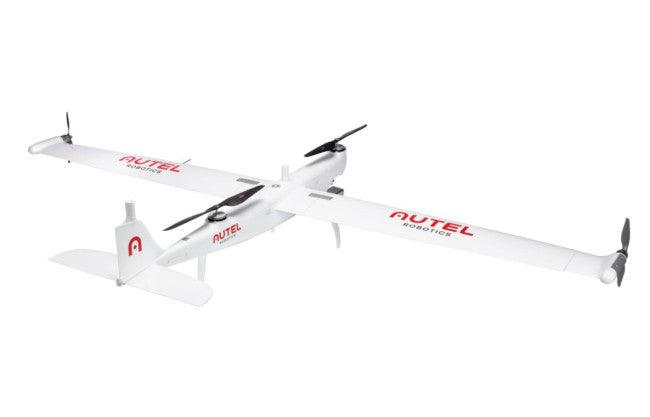

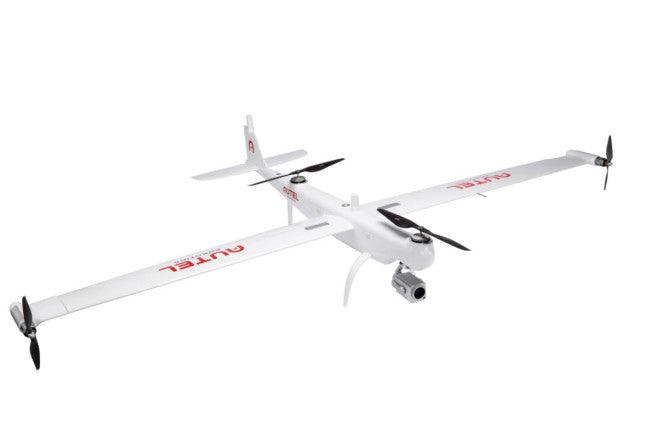

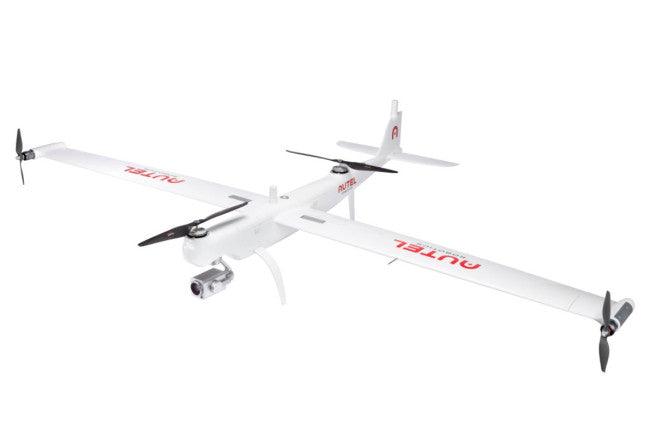

The Dragonfish's unique tilt-rotor design simplifies operation while maximizing performance and efficiency. With no complicated moving parts, the Dragonfish is modular, waterproof, smart, and reliable. The Dragonfish is mission ready right out of the box and includes powerful AI tracking capabilities and a multitude of modular payload options. An endurance of up to 180 minutes (including payload) further augments the Dragonfish's robust mission capabilities and pushes it significantly ahead of the competition.
- UP TO 180 MINUTES FLIGHT TIME
- 3 MINUTES QUICK ASSEMBLY
- 4K / 50X OPTICAL ZOOM
- UP TO 108KM/H MAX SPEED
- 18.6 MILES TRANSMISSION RANGE
- 5SECOND SYSTEM BOOT AND SELF CHECK
PRACTICAL APPLICATIONS
The Dragonfish's powerful platform and modular payload options gives it the flexibility to excel in a wide range of applications
- PUBLIC SAFETY
- FIRE FIGHTING AND PREVENTION
- ENERGY
- TRAFFIC MONITORING AND MANAGEMENT
- COASTAL OVERWATCH AND SECURITY
- AGRICULTURE
RTK MODULE
The Dragonfish is equipped with 2 RTK modules for additional redundancy. By integrating the GNSS Base Station with the RTK modules, the Dragonfish can achieve centimeter accuracy, precise headings and strong anti-magnetic interference capabilities. These modules back up one another and greatly improves the quality of image metadata for photogrammetry and increases flight precision and safety.

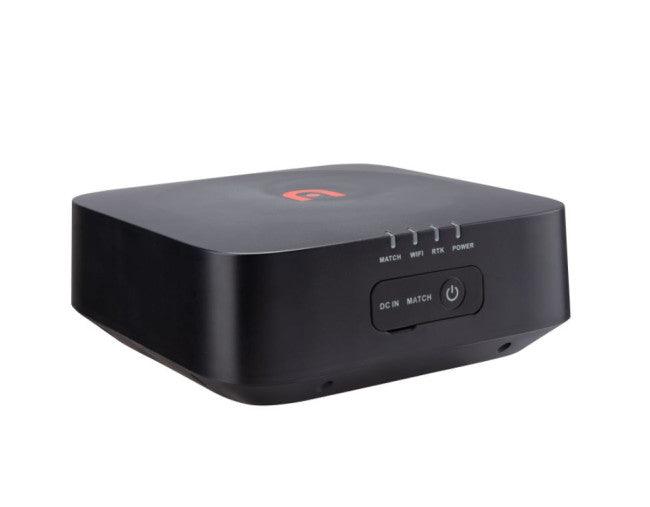

Autel Robotics' GNSS Base Station provides centimeter accuracy and supports all 4 major satellite systems
PROFESSIONAL SOFTWARE SOLUTIONS
AUTEL VOYAGER
Autel Voyager is specifically designed for the dragonfish for industry specific applications. The software provides advanced mission planning, intelligent tracking, flight history tracking, and other autonomous features. Simple to use yet incredibly powerful, Autel Voyager is the one stop solution for every mission.

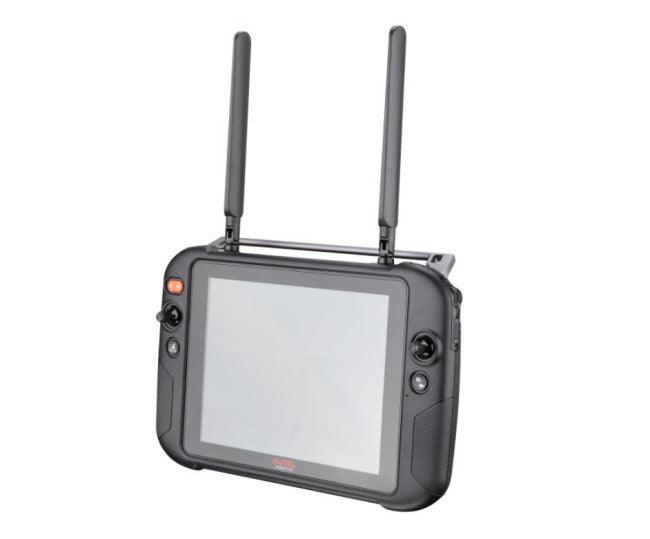

9.7"1000NIT ULTRA-BRIGHT GROUND CONTROL STATION
The high resolution (2048*1536), 9.7 inches, ultra-bright (1000 nits) TFT-LCD touchscreen ensures maximum visibility and practicality in all situations.
Autel Ground Control Station is water, dust, and water resistant. Autel Robotics' new antenna design allows the video transmission to reach up to 18.6 miles (30km)
The Autel Robotics ground station controller has a battery life of up to 4.5 hours and can be operated indefinitely with a remote power source
Autel Ground Control Station is water, dust, and water resistant. Autel Robotics' new antenna design allows the video transmission to reach up to 18.6 miles (30km)
The Autel Robotics ground station controller has a battery life of up to 4.5 hours and can be operated indefinitely with a remote power source
COMPACT AND PORTABLE
The Dragonfish can be easily disassembled by a one man team and will fit in the back of typical car trunks. The entire system can be assembled without tools and is ready to fly in less than 5 minutes.
